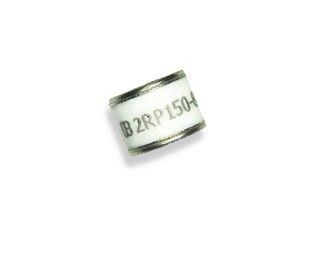

2R-8*6（S）系列

发布日期：(2018-08-15) 点击次数：1527

2R-8*6（S）系列

Product Description:

Low capacitance(<1.5pF)
Size: 8.0*6.0mm
Impluse Spark-over Voltage:075-1000V
Provide ultra-fast response to surge voltage from slow-rising surge of 100V/S to rapid-rising surge of 1kv/μS
High ins ****PLEASE CHECK TO SEE WHAT IS MISSING HERE***

Part Number	100V/s(V)	1KV/μs (V)	8/20μs,10times(KA)	10/350μs (KA)	50Hz,1sec(A)	10/1000μs,100A(times)	Test Voltage DC(V)	(GΩ)	Capacitance(pF)

2RM075M-8/S	75± 20%	600	10	2.5	10	500	25	1.0	1.5
2RM090M-8/S	90±20%	600	10	2.5	10	500	50	1.0	1.5
2RM150M-8/S	150± 20%	600	10	2.5	10	500	100	1.0	1.5
2RM230M-8/S	230± 20%	700	10	2.5	10	500	100	1.0	1.5
2RM250M-8/S	250± 20%	700	10	2.5	10	500	100	1.0	1.5
2RM300M-8/S	300± 20%	900	10	2.5	10	500	100	1.0	1.5
2RM350M-8/S	350± 20%	900	10	2.5	10	500	100	1.0	1.5
2RM420M-8/S	420± 20%	1000	10	2.5	10	500	100	1.0	1.5
2RM470M-8/S	470± 20%	1000	10	2.5	10	500	250	1.0	1.5
2RM600M-8/S	600± 20%	1200	10	2.5	10	500	250	1.0	1.5
2RM800M-8/S	800± 20%	1400	10	2.5	10	500	250	1.0	1.5
2RM1000M-8/S	1000± 20%	1700	10	2.5	10	500	250	1.0	1.5
2RP075M-8/S	75± 20%	600	20	5.0	20	500	25	1.0	1.5
2RP090M-8/S	90± 20%	600	20	5.0	20	500	50	1.0	1.5
2RP150M-8/S	150± 20%	600	20	5.0	20	500	100	1.0	1.5
2RP230M-8/S	230± 20%	700	20	5.0	20	500	100	1.0	1.5
2RP250M-8/S	250± 20%	700	20	5.0	20	500	100	1.0	1.5
2RP300M-8/S	300± 20%	900	20	5.0	20	500	100	1.0	1.5
2RP350M-8/S	350± 20%	900	20	5.0	20	500	100	1.0	1.5
2RP420M-8/S	420± 20%	1000	20	5.0	20	500	100	1.0	1.5
2RP470M-8/S	470± 20%	1000	20	5.0	20	500	250	1.0	1.5
2RP600M-8/S	600± 20%	1200	20	5.0	20	500	250	1.0	1.5
2RP800M-8/S	800± 20%	1400	20	5.0	20	500	250	1.0	1.5
2RP1000M-8/S	1000± 20%	1700	20	5.0	20	500	250	1.0	1.5
