2R-8*6系列

发布日期：(2018-08-15) 点击次数：1418

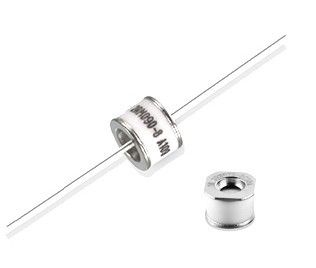

2R-8*6系列

Product Description:

Ultra Low Insertion Loss
Size: 8.0*6.0mm
Impluse Spark-over Voltage:075-800V
10KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5
Excellent response to fast-rising transients

Part Number	100V/s(V)	1KV/μs(V)	8/20μs,10times(KA)	50Hz,1sec(A)	10/1000μs,100A(times)	Test Voltage DC(V)	(GΩ)	Capacitance(pF)

2RM075L-8 2RM075M-8	75±20%	600	10	10	500	25	1.0	1.5
2RM090L-8 2RM090M-8	90±20%	600	10	10	500	50	1.0	1.5
2RM145L-8 2RM145M-8	145±20%	700	10	10	500	100	1.0	1.5
2RM150L-8 2RM150M-8	150±20%	700	10	10	500	100	1.0	1.5
2RM230L-8 2RM230M-8	230±20%	700	10	10	500	100	1.0	1.5
2RM250L-8 2RM250M-8	250±20%	800	10	10	500	100	1.0	1.5
2RM300L-8 2RM300M-8	300±20%	900	10	10	500	100	1.0	1.5
2RM350L-8 2RM350M-8	350±20%	900	10	10	500	100	1.0	1.5
2RM400L-8 2RM400M-8	400±20%	1000	10	10	500	100	1.0	1.5
2RM470L-8 2RM470M-8	470±20%	1100	10	10	500	250	1.0	1.5
2RM600L-8 2RM600M-8	600±20%	1300	10	10	500	250	1.0	1.5
2RM800L-8 2RM800M-8	800±20%	1500	10	10	500	250	1.0	1.5
2RP075L-8 2RP075M-8	75±20%	600	20	20	500	25	1.0	1.5
2RP090L-8 2RP090M-8	90±20%	600	20	20	500	50	1.0	1.5
2RP145L-8 2RP145M-8	145±20%	700	20	20	500	100	1.0	1.5
2RP150L-8 2RP150M-8	150±20%	700	20	20	500	100	1.0	1.5
2RP230L-8 2RP230M-8	230±20%	700	20	20	500	100	1.0	1.5
2RP250L-8 2RP250M-8	250±20%	800	20	20	500	100	1.0	1.5
2RP300L-8 2RP300M-8	300±20%	900	20	20	500	100	1.0	1.5
2RP350L-8 2RP350M-8	350±20%	900	20	20	500	100	1.0	1.5
2RP400L-8 2RP400M-8	400±20%	1000	20	20	500	100	1.0	1.5
2RP470L-8 2RP470M-8	470±20%	1100	20	20	500	250	1.0	1.5
2RP600L-8 2RP600M-8	600±20%	1300	20	20	500	250	1.0	1.5
2RP800L-8 2RP800M-8	800±20%	1500	20	20	500	250	1.0	1.5
2RM120L-8 2RM120M-8	120±20%	600	10	10	500	50	1.0	1.5
2RP120L-8 2RP120M-8	120±20%	600	20	20	500	50	1.0	1.5
