3R-8系列

发布日期：(2018-8-24) 点击次数：2660

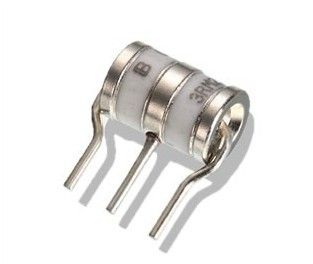

3R-8系列

Product Description:

Ultra Low Insertion Loss
Size: 8.0*10.0mm
Impluse Spark-over Voltage: 075-800V
10KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5
Excellent response to fast rising transients

Part Number	100V/s(V)	1KV/μs(V)	8/20μs,10times(KA)	50Hz,1sec(A)	10/1000μs,100A(times)	Test Voltage DC(V)	(GΩ)	Capacitance(pF)

3RM075L-8 3RM075M-8	75±20%	700	10	10	300	25	1.0	2.0
3RM090L-8 3RM090M-8	90±20%	700	10	10	300	50	1.0	2.0
3RM150L-8 3RM150M-8	150±20%	700	10	10	300	100	1.0	2.0
3RM200L-8 3RM200M-8	200±20%	700	10	10	300	100	1.0	2.0
3RM230L-8 3RM230M-8	230±20%	700	10	10	300	100	1.0	2.0
3RM350L-8 3RM350M-8	350±20%	850	10	10	300	100	1.0	2.0
3RM400L-8 3RM400M-8	400±20%	850	10	10	300	100	1.0	2.0
3RM470L-8 3RM470M-8	470±20%	950	10	10	300	250	1.0	2.0
3RM600L-8 3RM600M-8	600±20%	1300	10	10	300	250	1.0	2.0
3RM800L-8 3RM800M-8	800±20%	1500	10	10	300	250	1.0	2.0
3RP075L-8 3RP075M-8	75±20%	700	20	20	300	25	1.0	2.0
3RP090L-8 3RP090M-8	90±20%	700	20	20	300	50	1.0	2.0
3RP150L-8 3RP150M-8	150±20%	700	20	20	300	100	1.0	2.0
3RP200L-8 3RP200M-8	200±20%	700	20	20	300	100	1.0	2.0
3RP230L-8 3RP230M-8	230±20%	700	20	20	300	100	1.0	2.0
3RP350L-8 3RP350M-8	350±20%	850	20	20	300	100	1.0	2.0
3RP400L-8 3RP400M-8	400±20%	850	20	20	300	100	1.0	2.0
3RP470L-8 3RP470M-8	470±20%	950	20	20	300	250	1.0	2.0
3RP600L-8 3RP600M-8	600±20%	1300	20	20	300	250	1.0	2.0
3RP800L-8 3RP800M-8	800±20%	1500	20	20	300	250	1.0	2.0
